Vacuum Glazing System

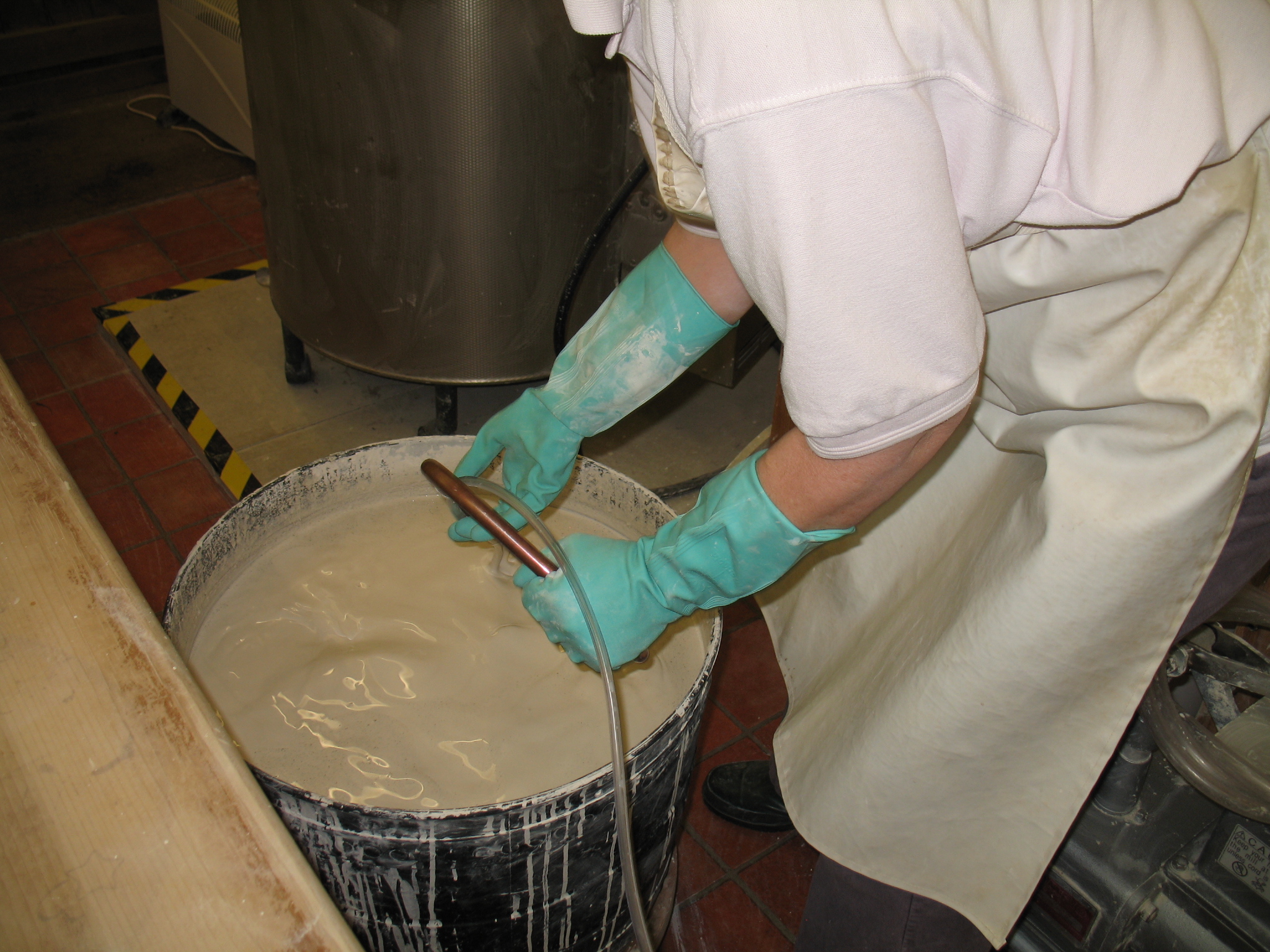

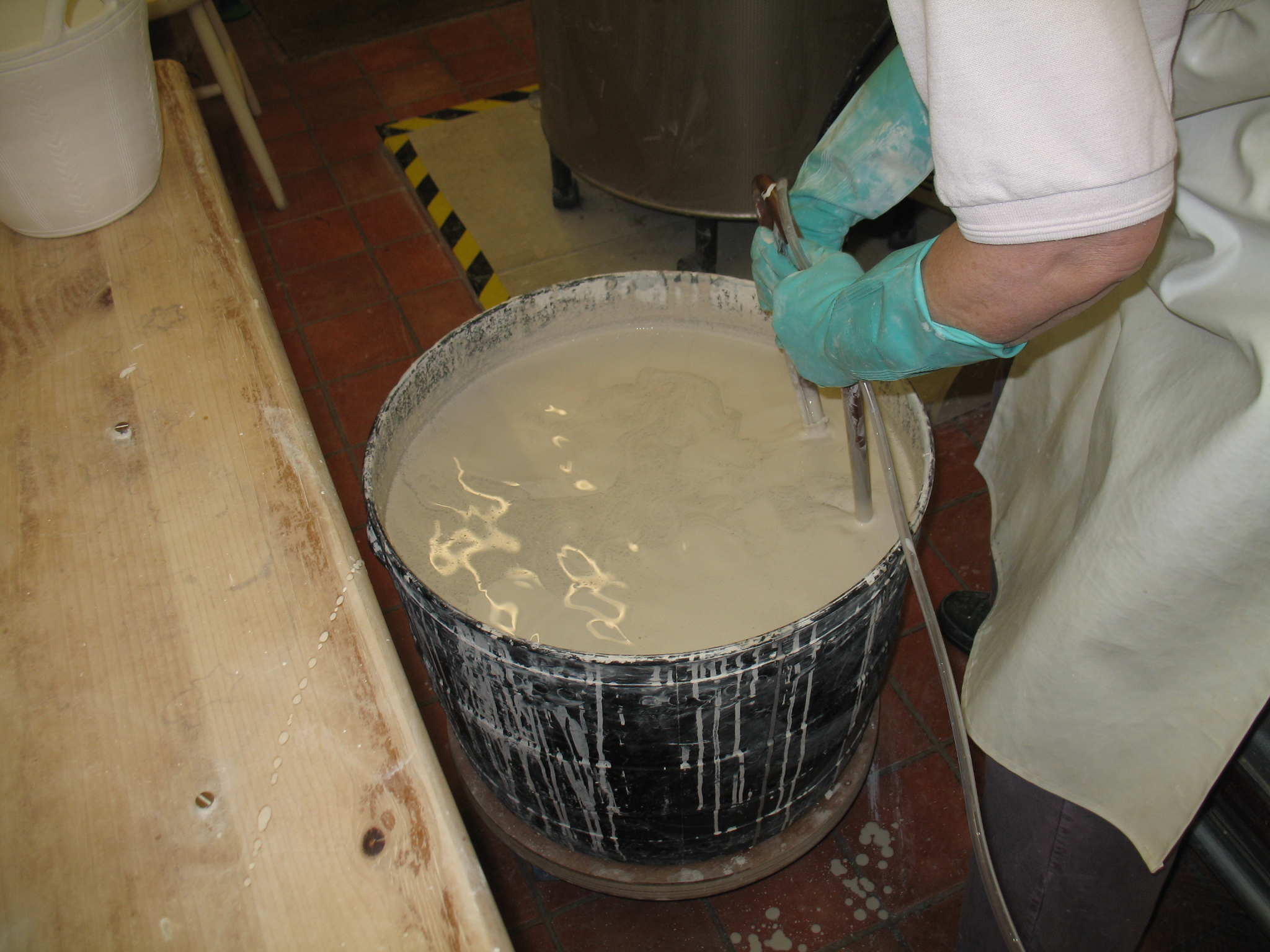

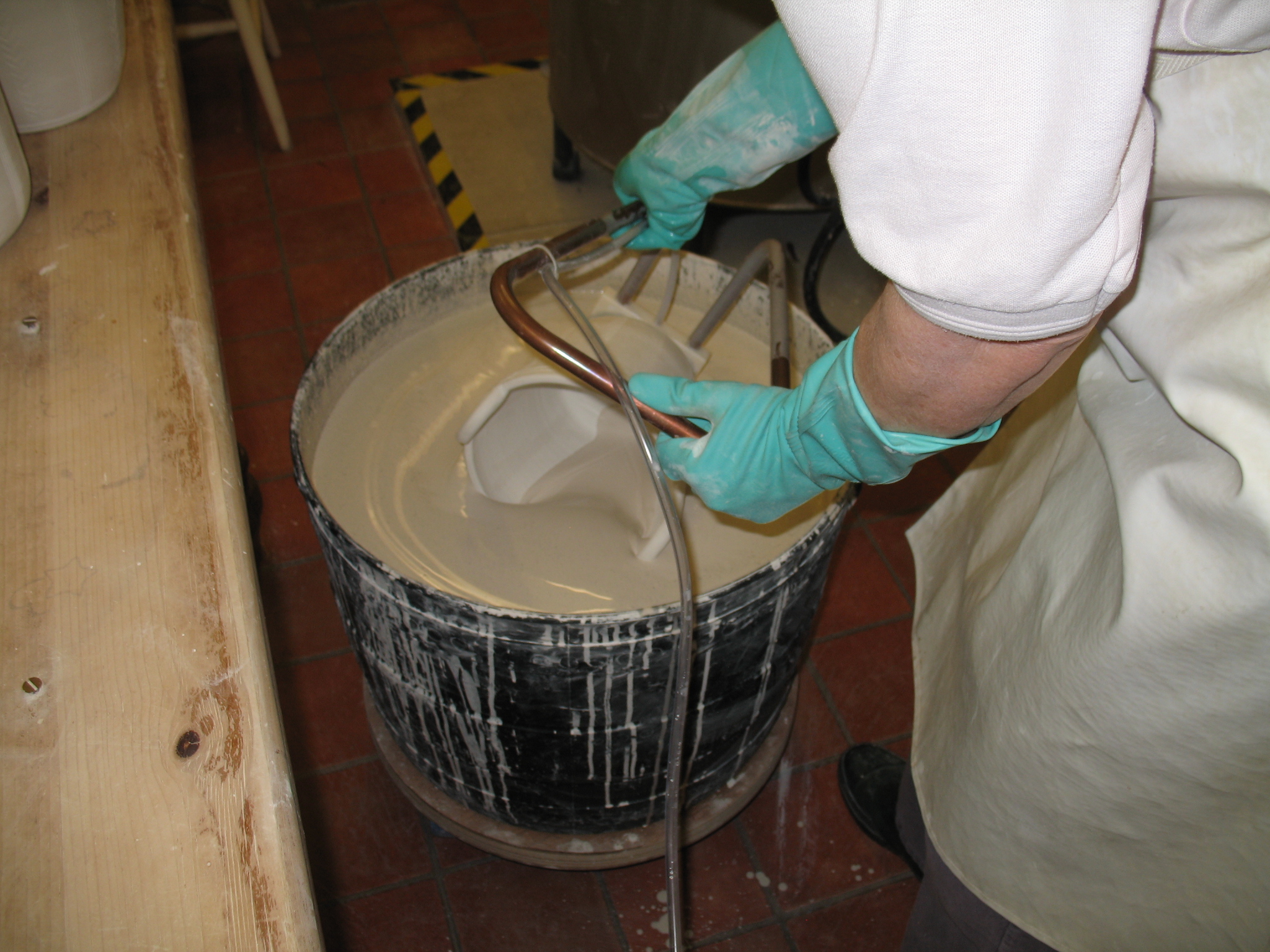

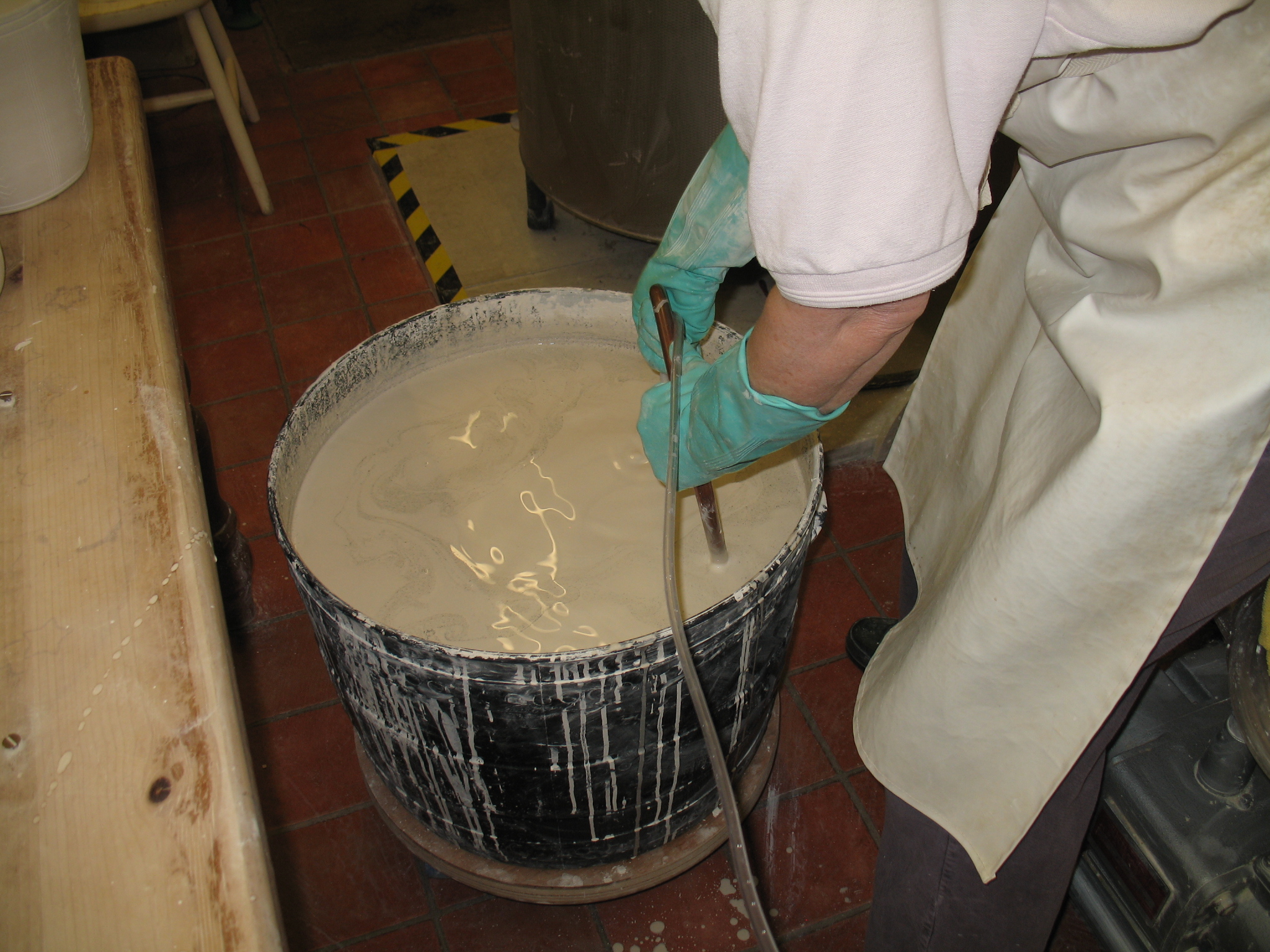

Our vacuum glazing system radically simplifies the task of glazing pots. It consists of a vacuum pump, an air cylinder with a vacuum gauge, a valve to admit air when required, and a vacuum jig with foam rubber seals. The photos show the system in use with various pots. First the pot is attached to the jig by opening the valve to connect it to the vacuum tank. The pot can then be placed in the glaze bucket, removed and drained, without directly touching it. It is then returned to the work table and the valve closed to release the vacuum. The system requires the area of the pot in contact with the seals to be unglazed. The seal pattern can be easily changed to suit the pot size and shape.

We would be happy to demonstrate this system to other potters, and to supply suitable equipment if requested. You are welcome to make your own system, of course; vacuum holding is in the public domain. It's the weight of the air that does it!

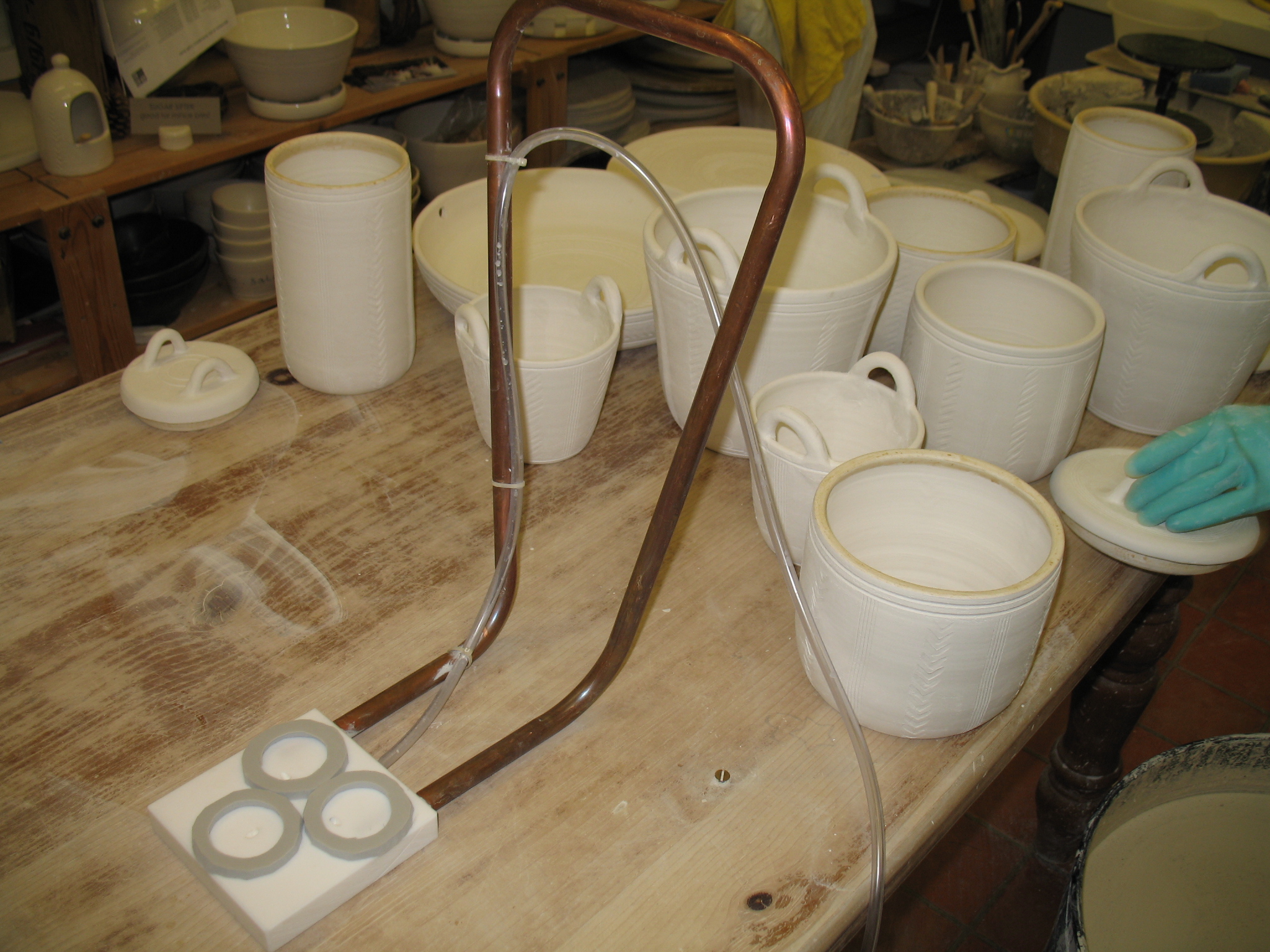

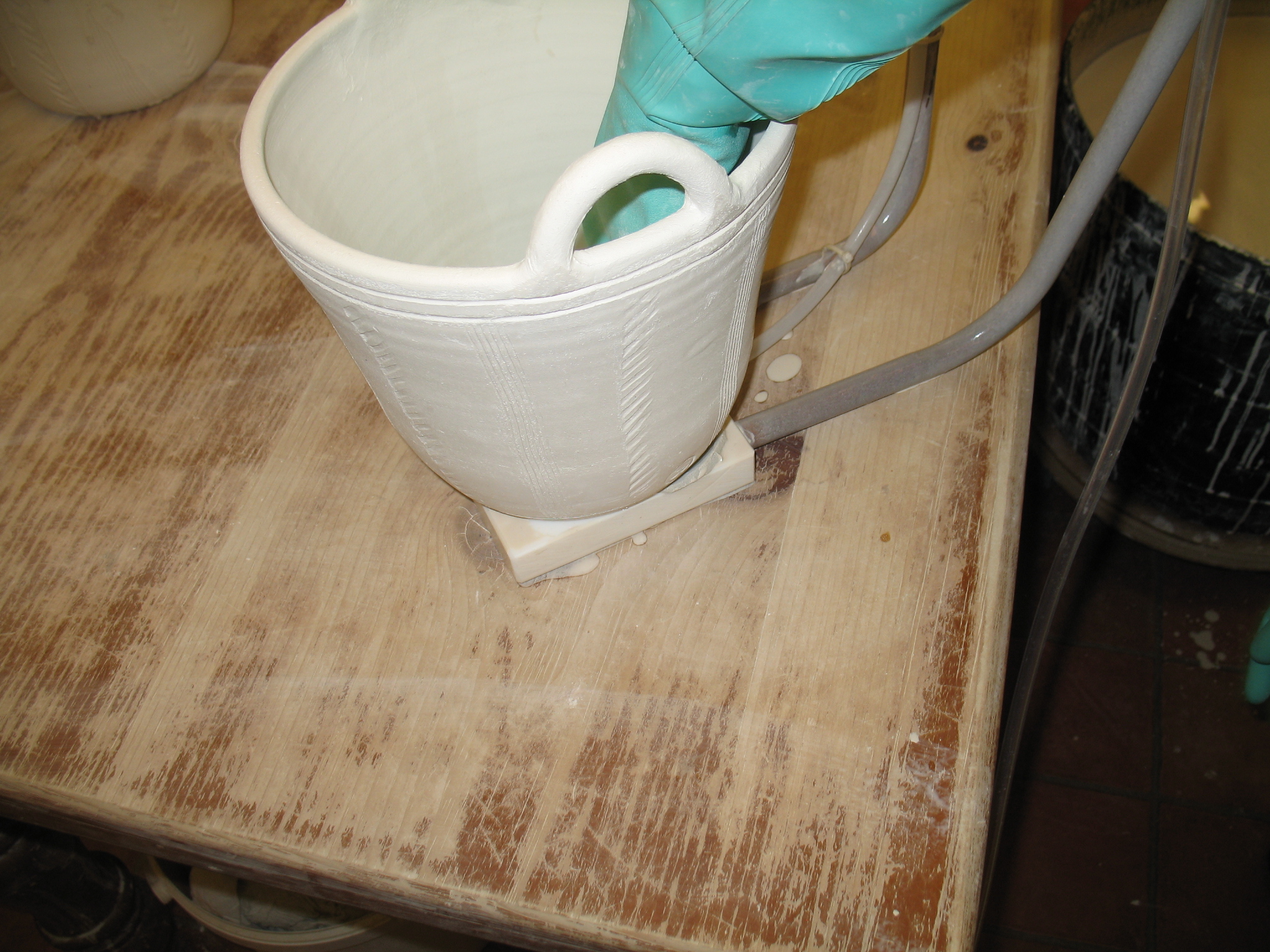

Vacuum jig

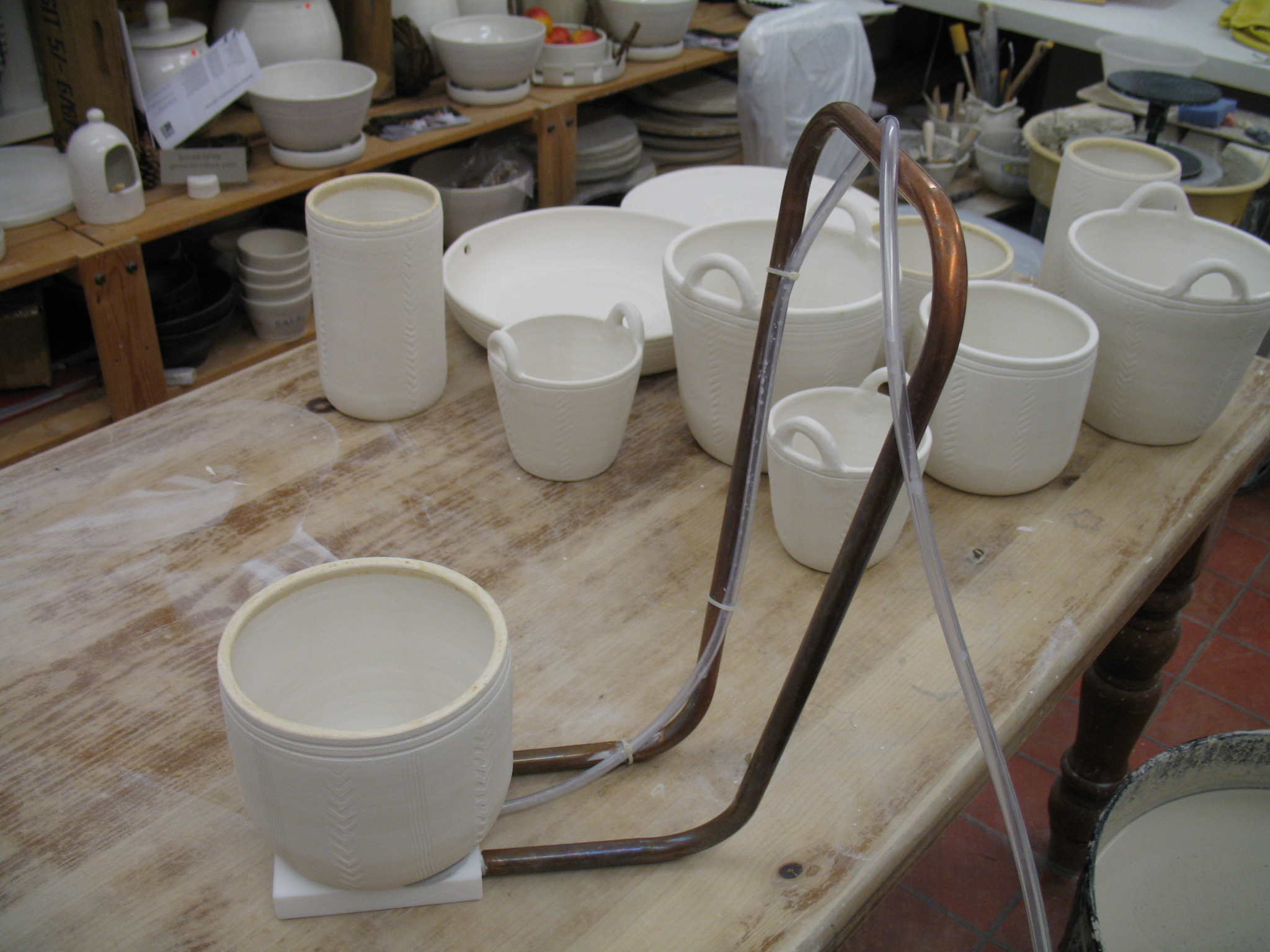

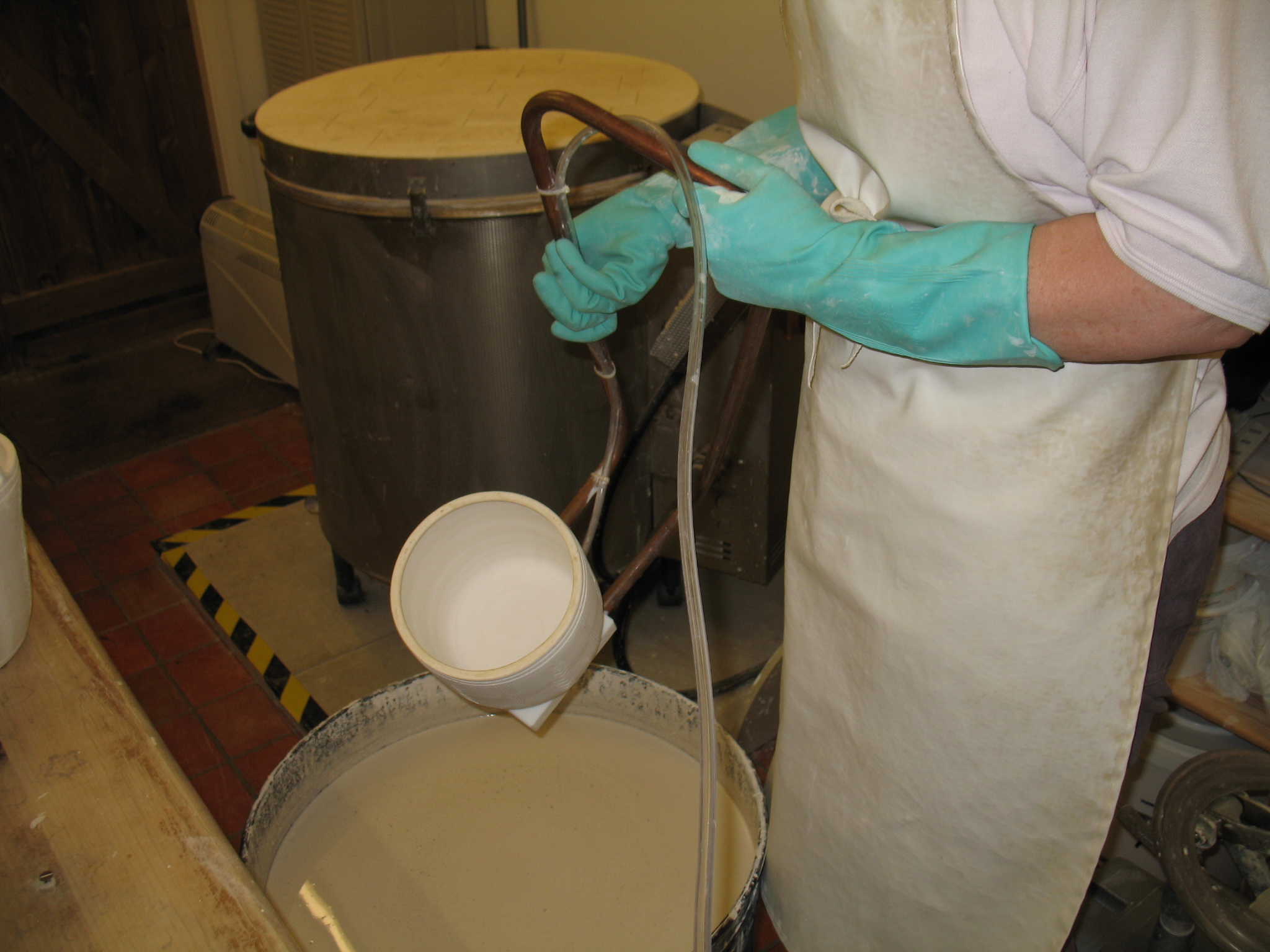

Medium storage jar
15cm dia

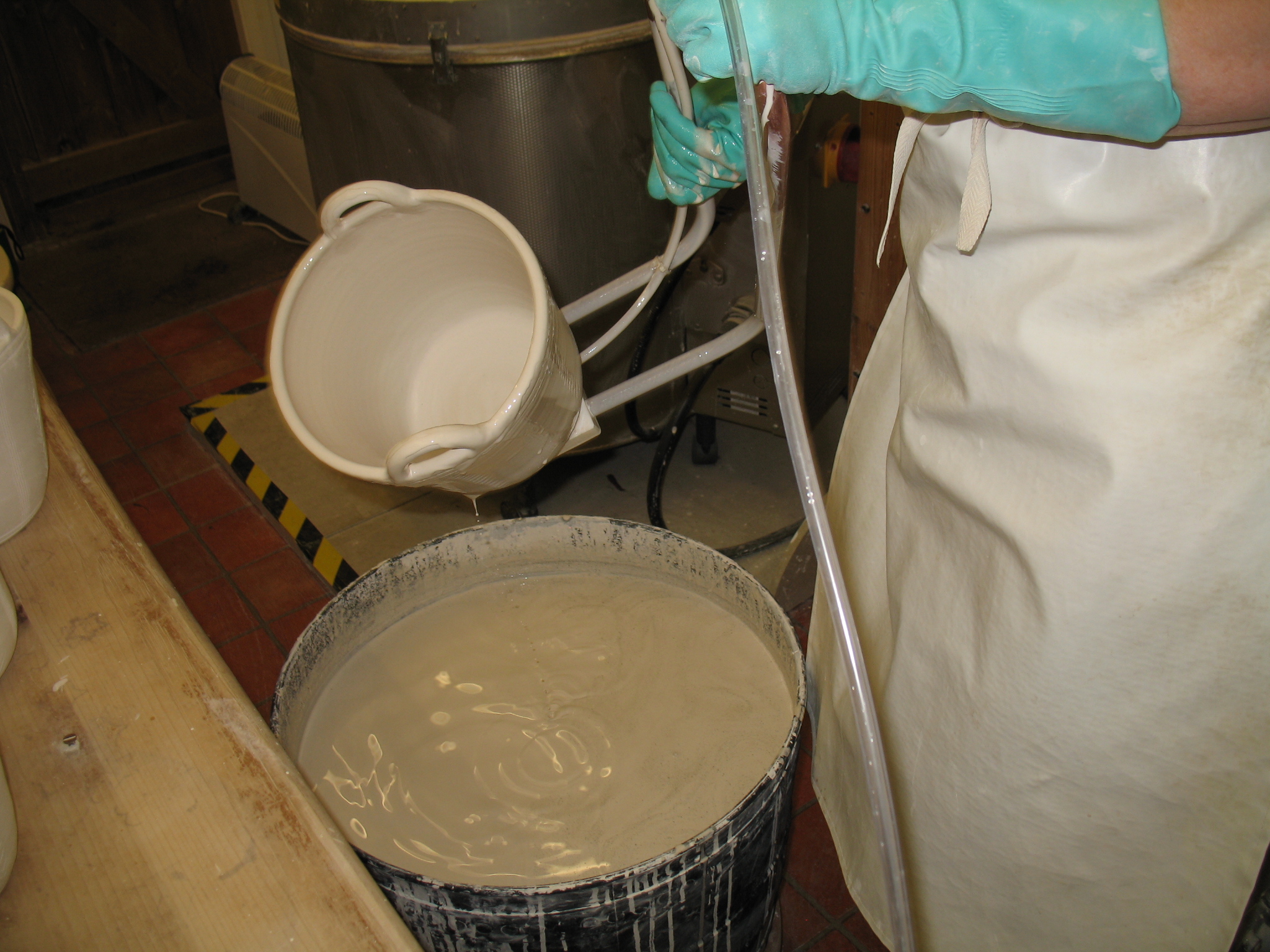

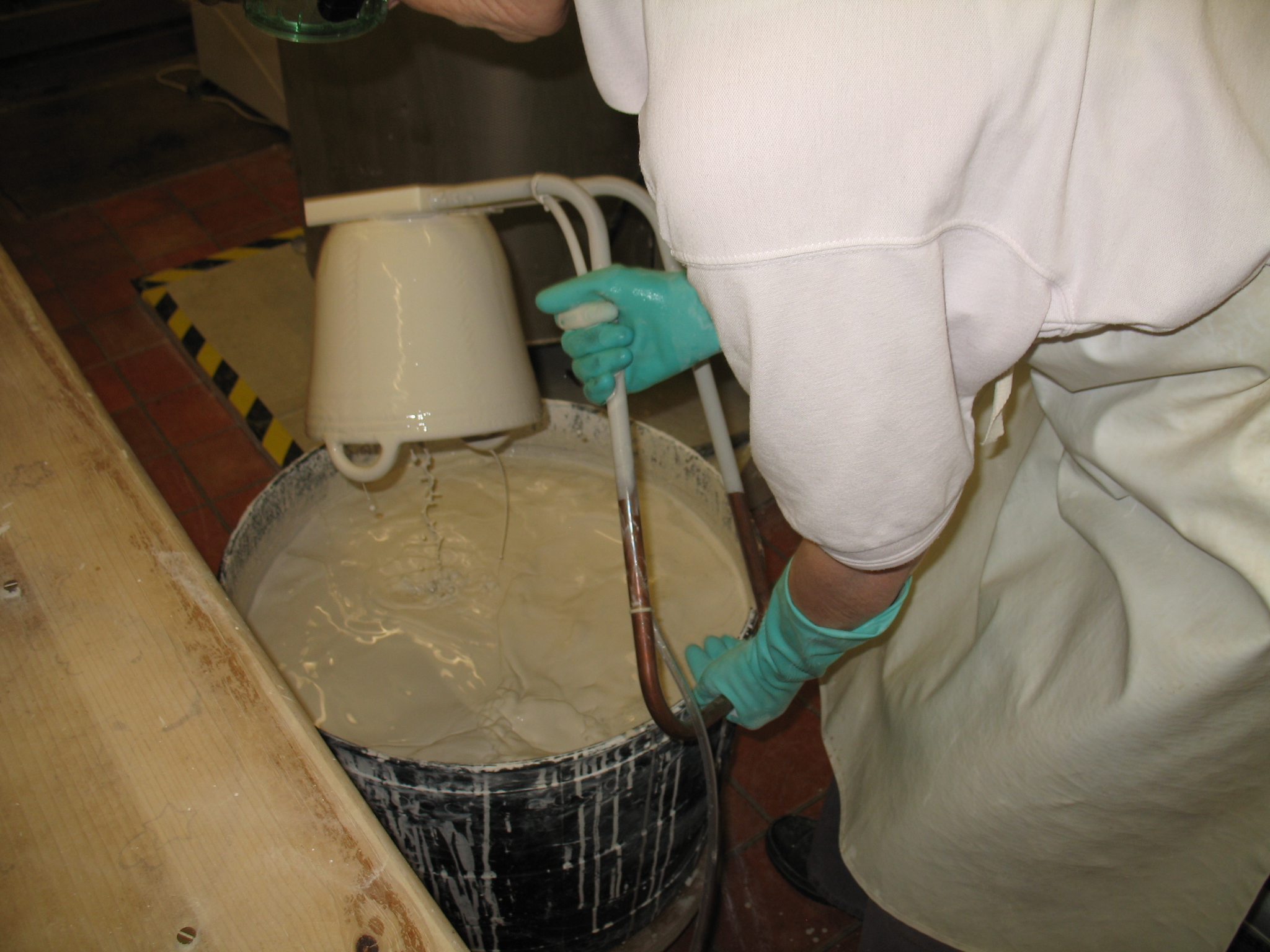

Large vegetable bucket
18cm dia

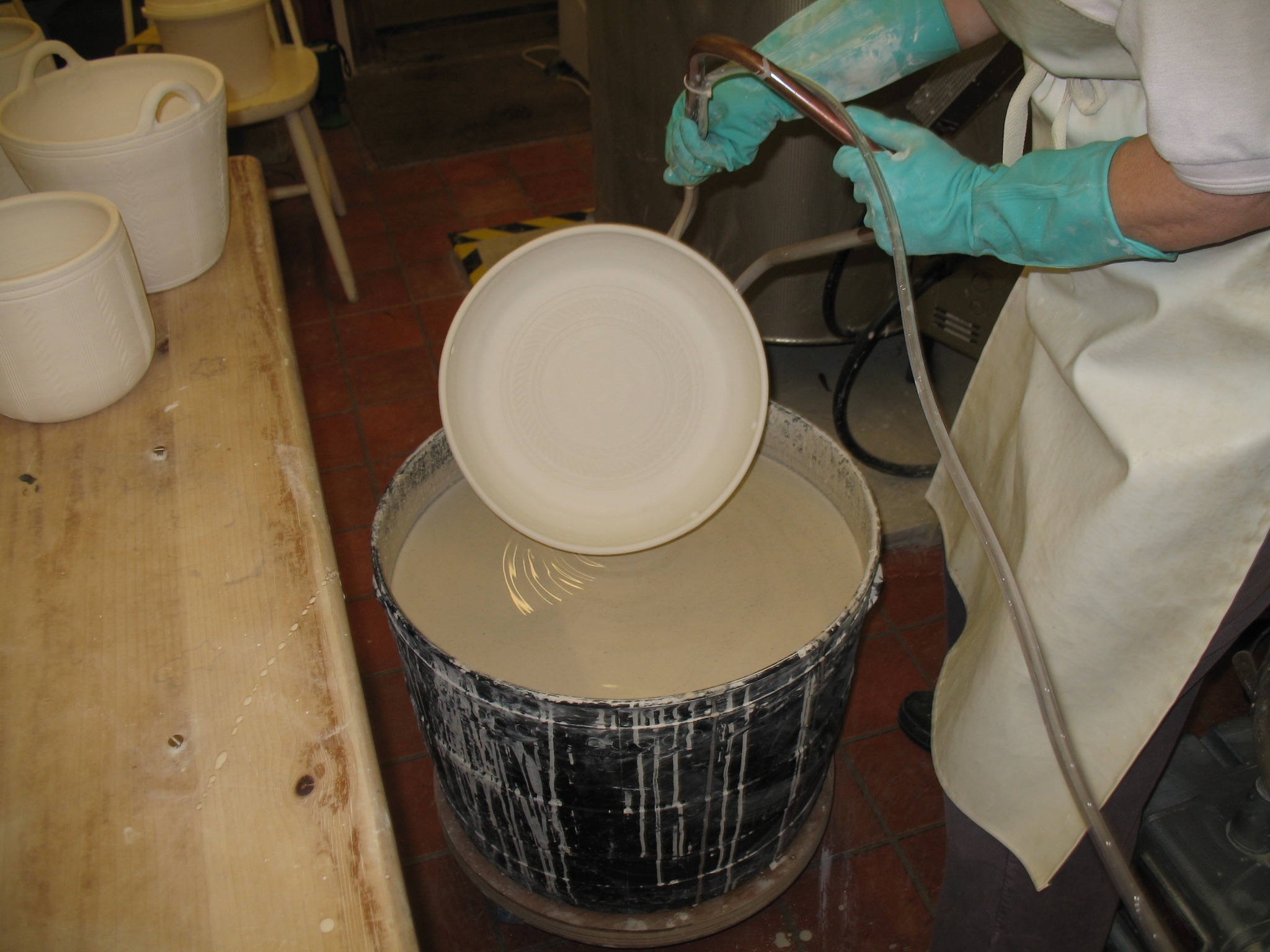

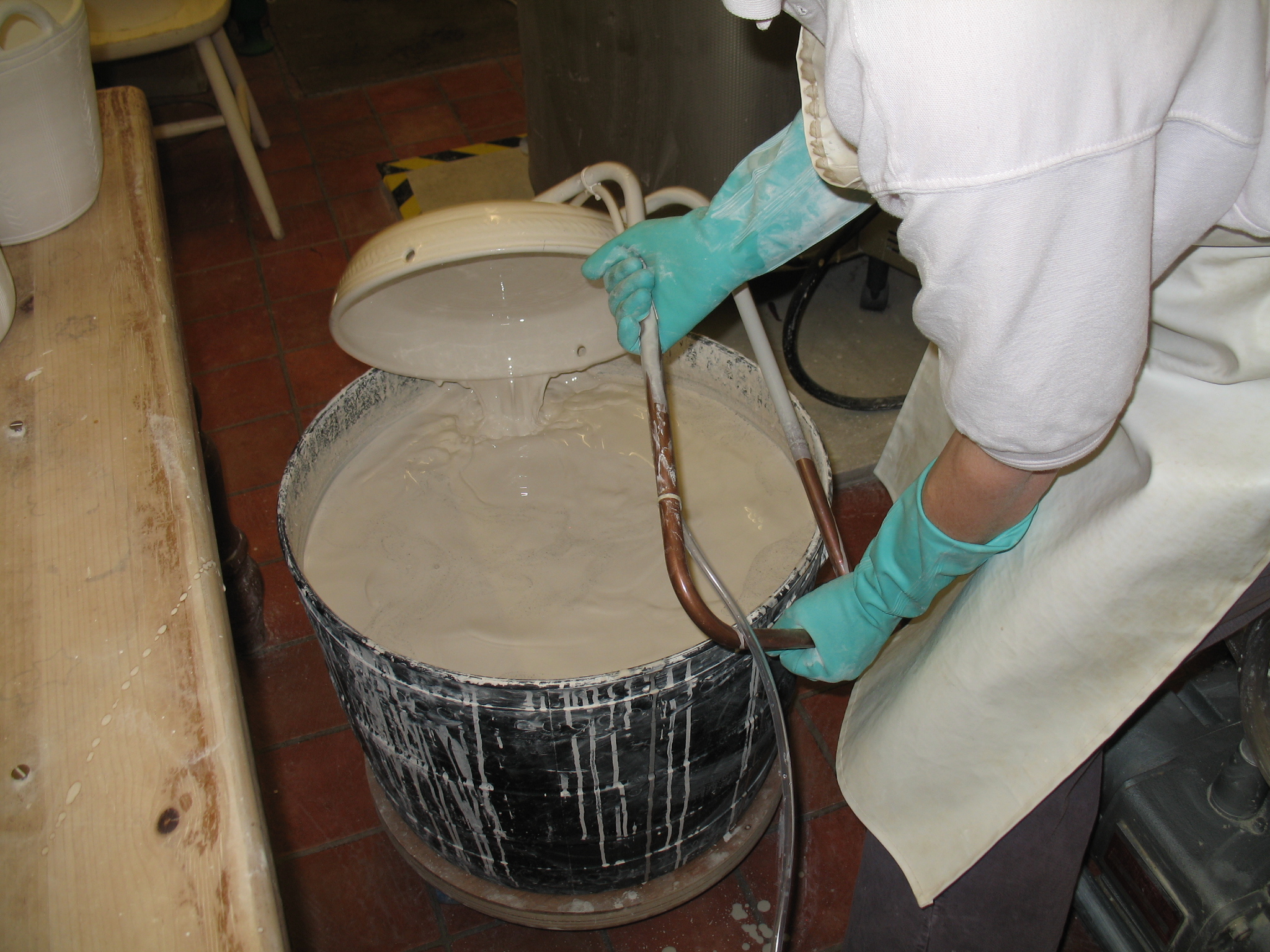

Fruit bowl
32cm dia

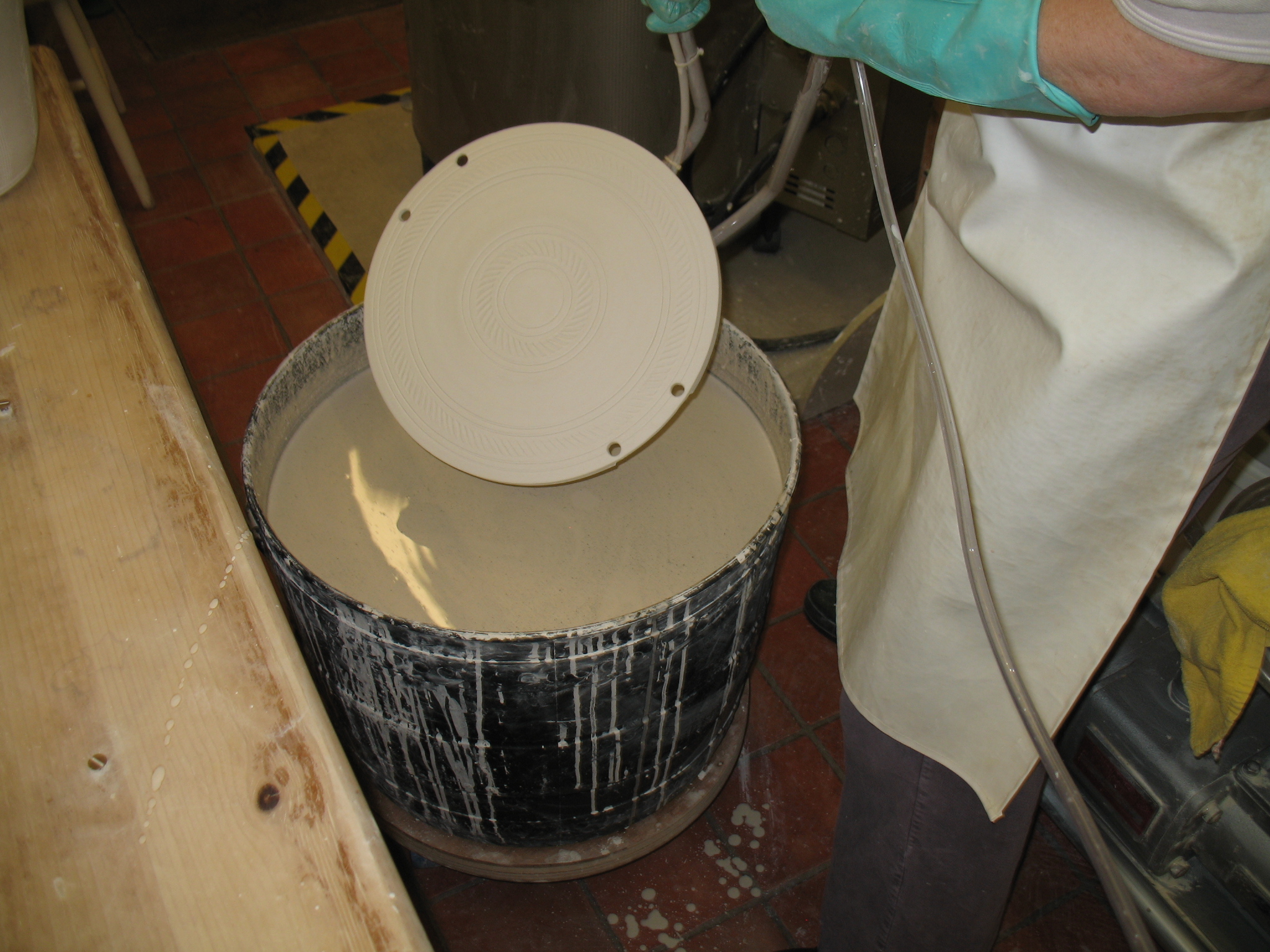

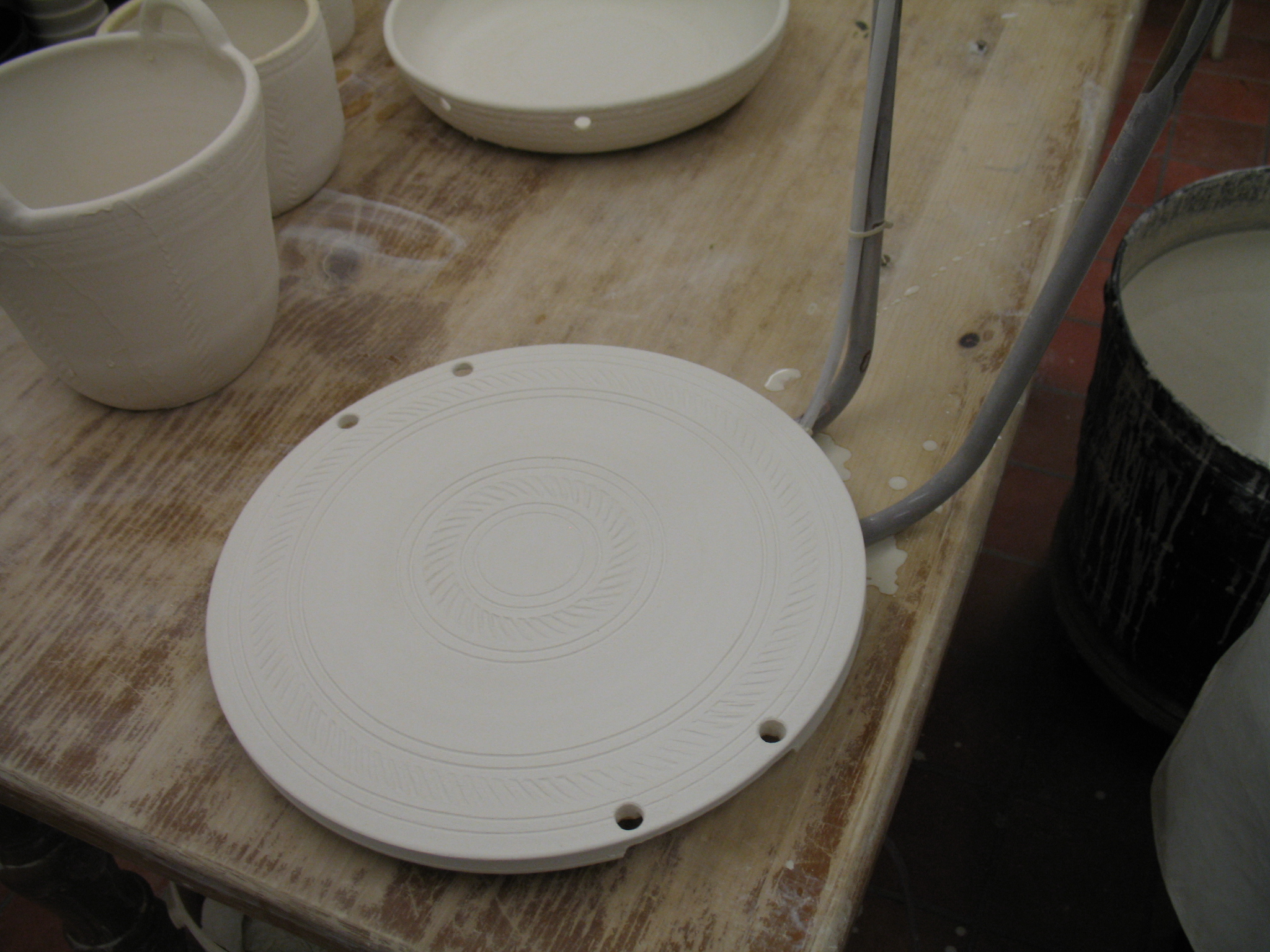

Cheese tray:
32cm dia
